DESIGN RULES/FORMULAS FOR PRESSURE VESSELS COMPONENTS
by National Codes ASME Section III, KTA 3211.2

Profil : 1. Vessel Design - by STRESS Analyses ASME Section III
Profil : 2. Vessel Design - by STRESS Analyses KTA 3211.2
Profil : 3. Vessel Design - by STRESS Analyses NTD A.S.I. Sekce III
Profil : 4. Vessel Design - by STRESS Analyses ASME Section III - Subsetion NB, NC
Profil : 5. Vessel Nozzle Design - by formulas WRC 107 + 297 with KTA 3211.2
Profil : 6. Elbow Design - by formulas KTA 3211.2
Profil : 7. Valve Design - by formulas KTA 3211.2
Profil : 8. Fatigue Design - by NTD A.S.I Sekce III
Profil : 9. Fatigue Design - by KTA 3211.2
Profil : 10. Fatigue Design - by ASME Section III - design curves by Appendix I

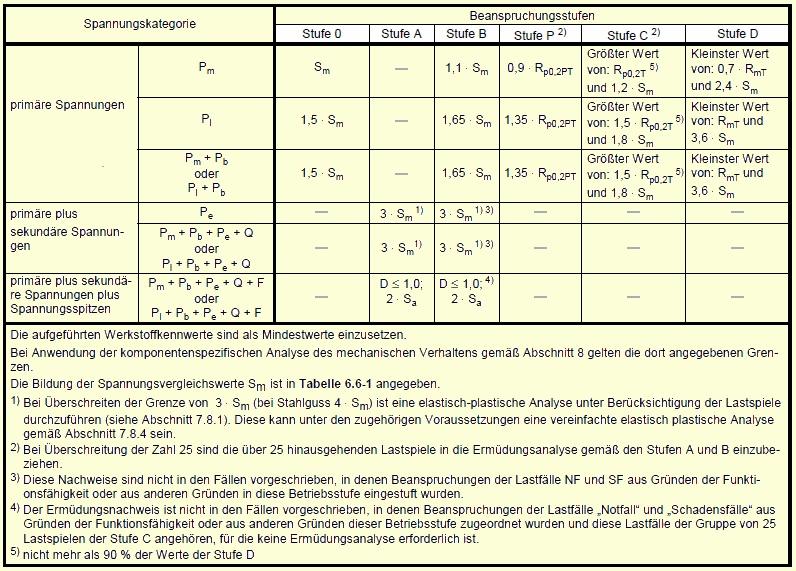

KTA 3211 - STRESS CATEGORY:

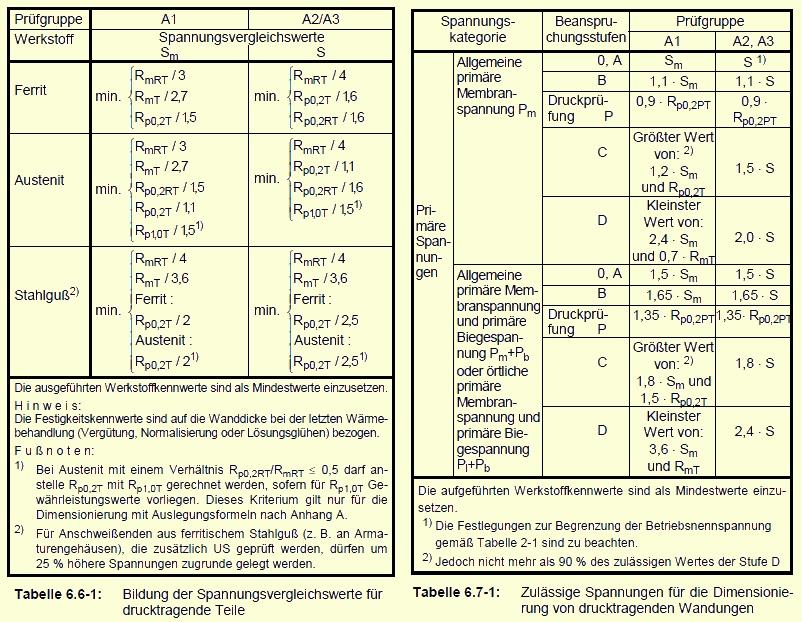

KTA 3211 - ALLOWABLE STRESSES:



SOFTWARE FOR SOLUTIONS

WIN_SHELL R2.72 www.schell-software.de
MATHCAD 15 www.mathsoft.com
ANSYS 13 NLT www.svsfem.cz
STATES www.uam.cz
